HEUMA double-drive blade mowers, clean and gentle cutting


rear mowers of the DM series

from 1.50m to 2.70m working width


front mowers of the DMF series

from 1.80m to 2.70m working width

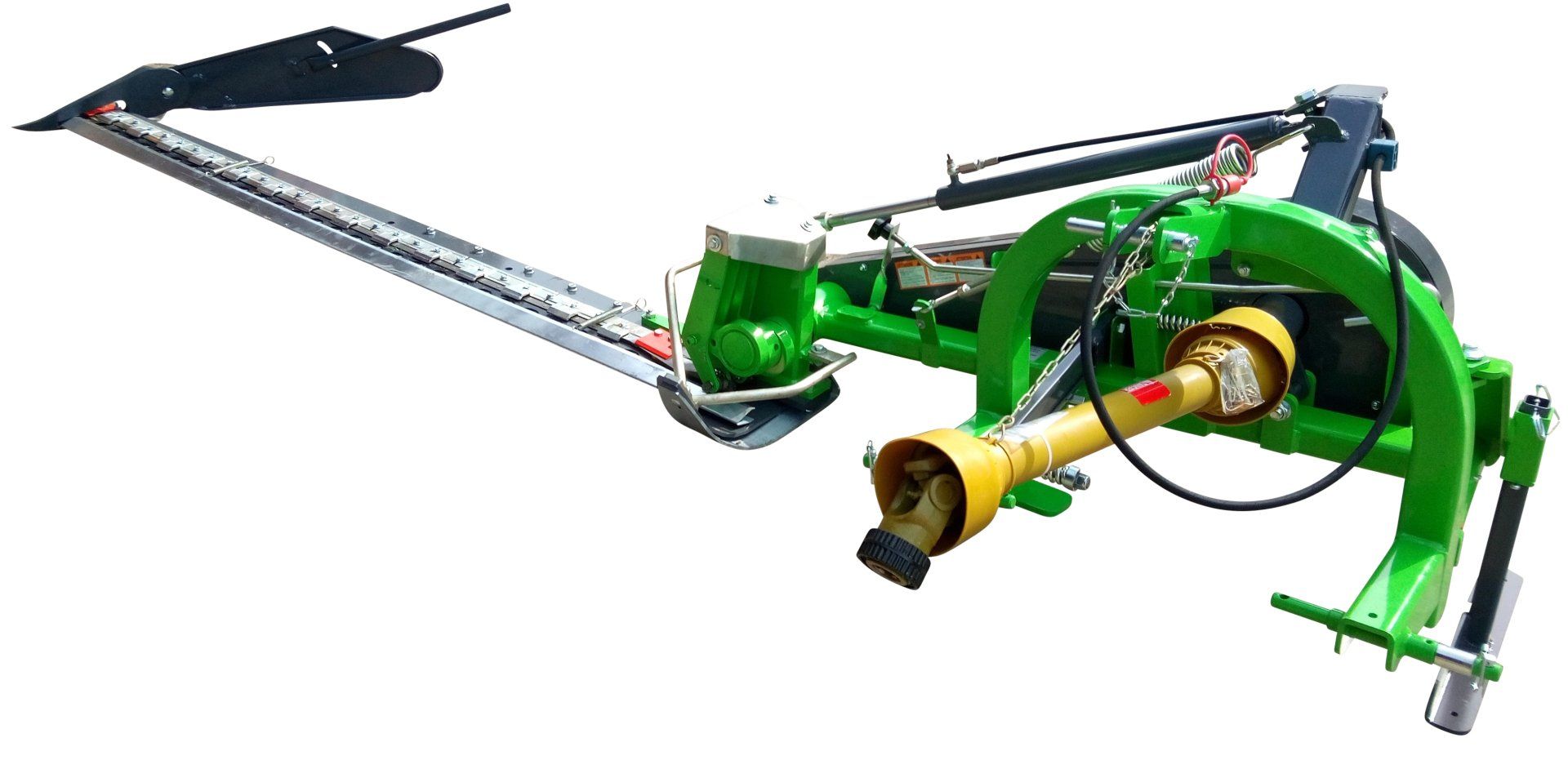

HEUMA double drive blade mowers with the special technology


In agriculture and landscape maintenance, grass cutting with a blade bar is more relevant than ever. The gentle cut and the low mechanical stress on the cuttings offer many advantages for species and nature conservation. HEUMA double-drive blade mowers also offer high area performance and low-maintenance, robust technology that can be used even under the most difficult conditions.The advantages


  • Fuel-efficient operation or low effort (less horsepower per meter of working width)
  • Lightweight construction, therefore particularly at home in hilly terrain
  • Simple construction (inexpensive construction)
  • gentle mowing (faster growth after cutting)
  • little contamination in the harvested crop (low crude ash input)
  • and ecologically (small creatures and insects are less harmed)




HEUMA mower technology

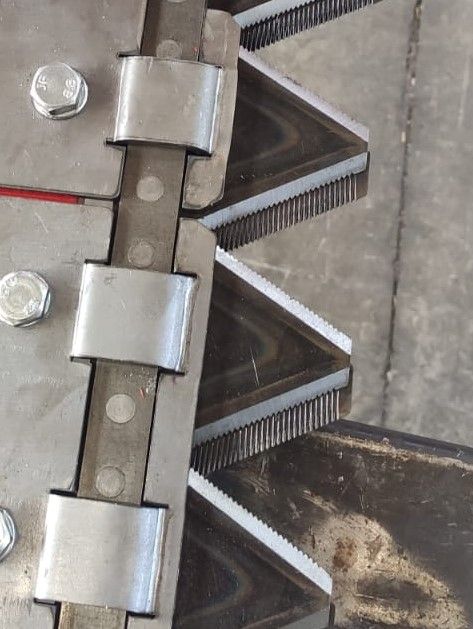

In addition to the classic finger and blade knife system, a blade knife-blade knife system can also be installed as an option. Only a few components need to be replaced.

This allows you to configure the right cutter bar depending on the application. In addition to the short blades shown in the photo, the lower blade can also be fitted with long blades including a lifting function.

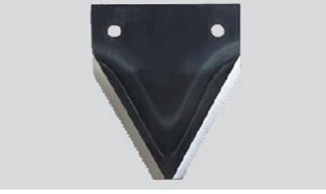

Self-sharpening knives

The arrangement of the moving fingers and the blades means that the blades sharpen themselves. This function is a great advantage, especially with blade mowers, as maintenance is minimized. The blades also have teeth, which further improves the cutting quality.

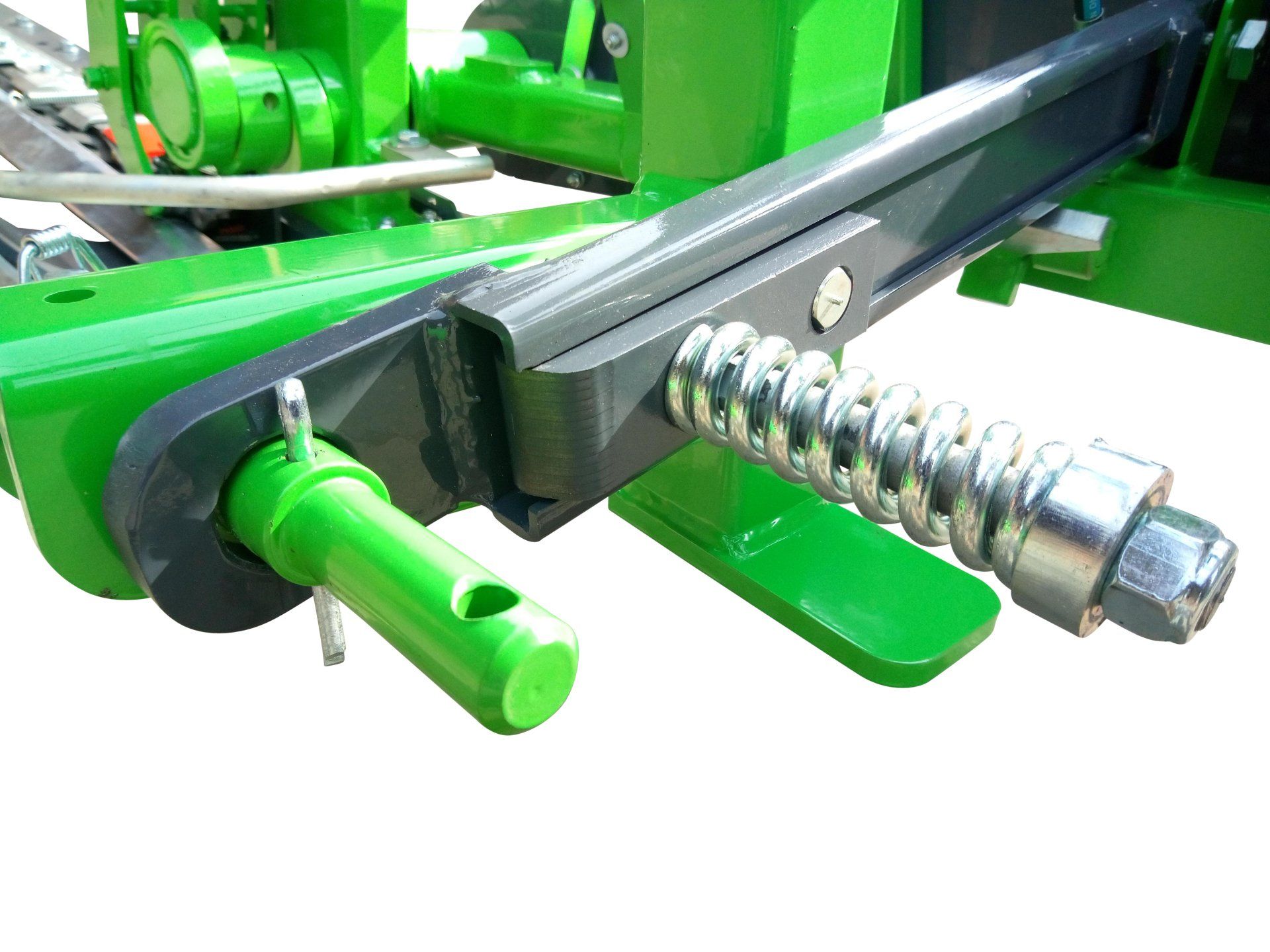

collision protection

The bar mowers have a collision protection device in case there is an obstacle in the grass. This prevents the cutter bar from being damaged.

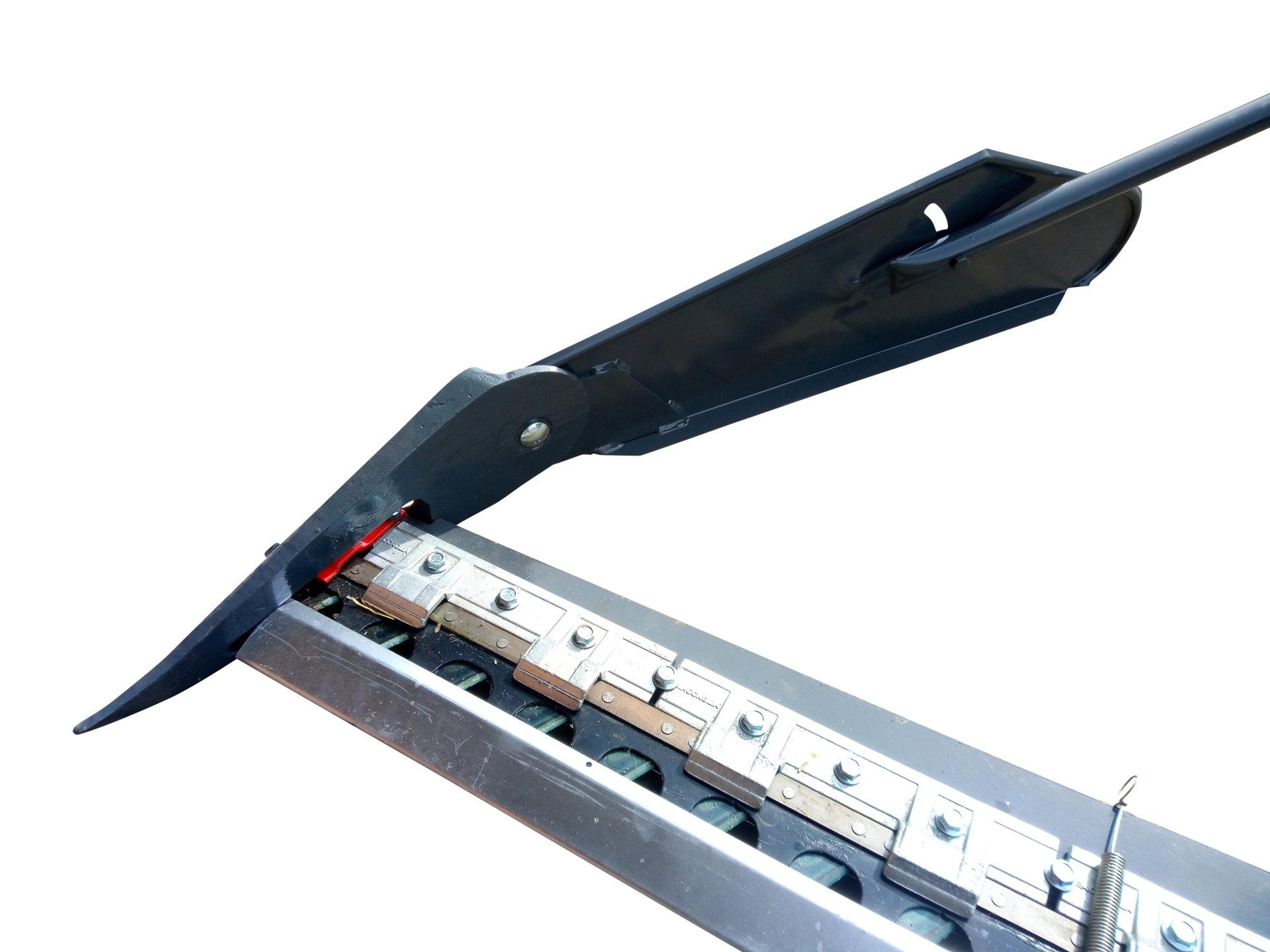

 Schwadblech

The swath guide plate of the bar mower has an important function so that the cutting edge is clearly visible and the machine can drive on the cleared area without driving on the grass that has already been cut.

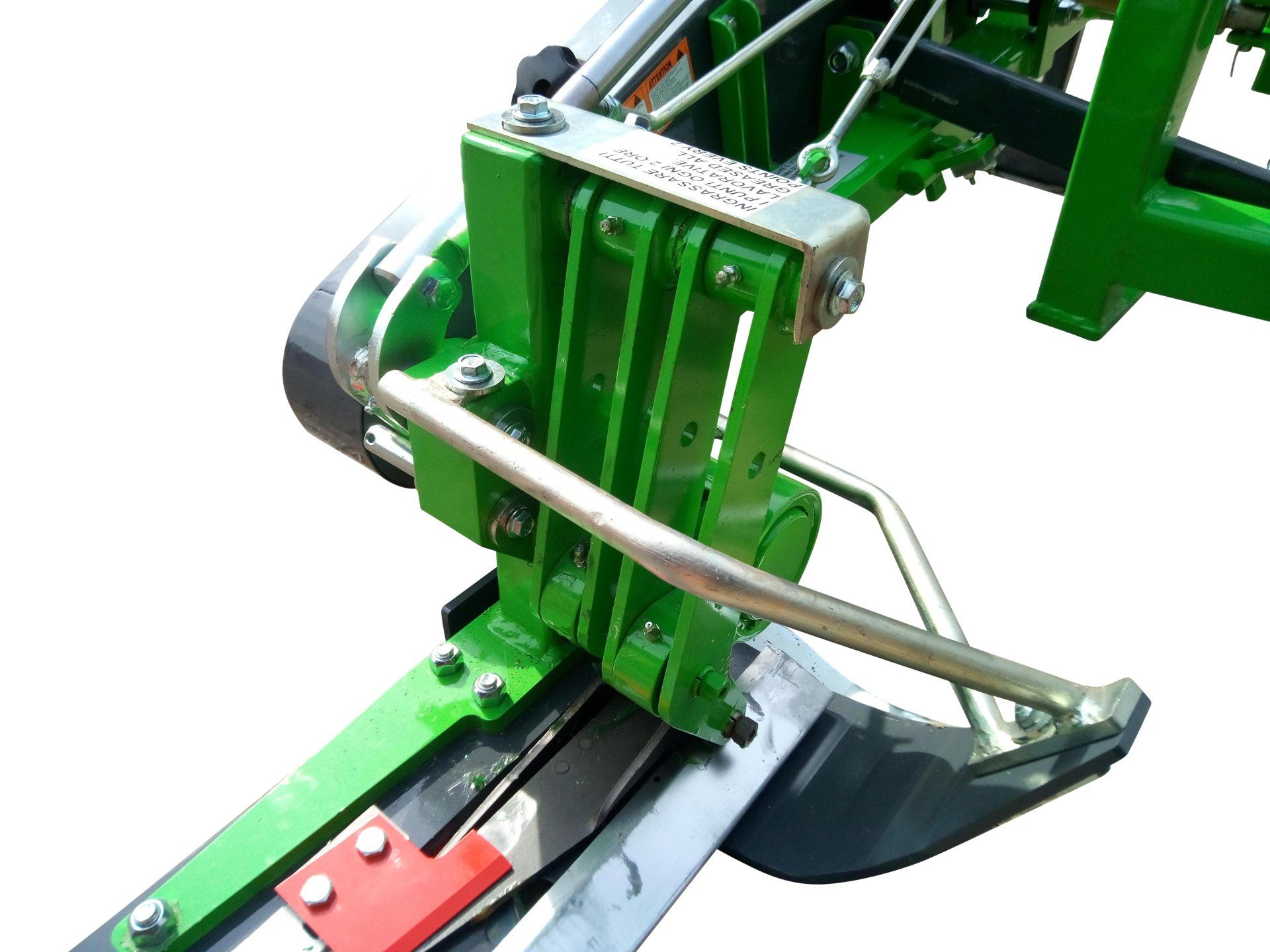

dual drive

The drive unit of the bar mowers is designed to be particularly wear-free. Pressed-in bushings of the entire drive can also be replaced, so that the bar mowers have a long service life. In addition, the drive is flanged on both sides, which provides additional stability. The particularly long lifting rod ensures low vibrations.

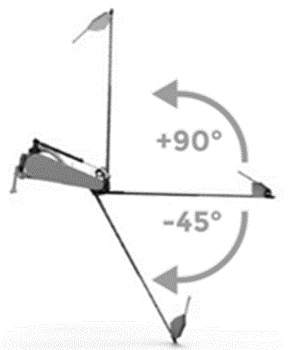

mowing slopes

HEUMA bar mowers are also particularly suitable for working on slopes or hedges, as they can be folded up and down in the working position. This means that blade bar mowers are also ideal for use in difficult terrain.

options

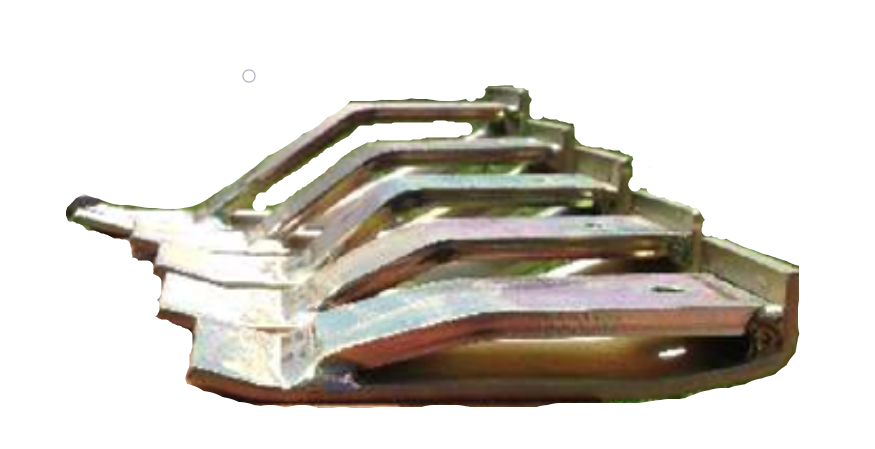

high mowing / spacing skids

Many environmental protection applications require high mowing to protect the turf and small animals and insects. To achieve this, the cutter bar is equipped with skids. Skids are optionally available in many heights. They are screwed onto the cutter bar and can be easily removed again. It is also possible to attach support wheels to achieve cutting heights of 50cm and more.

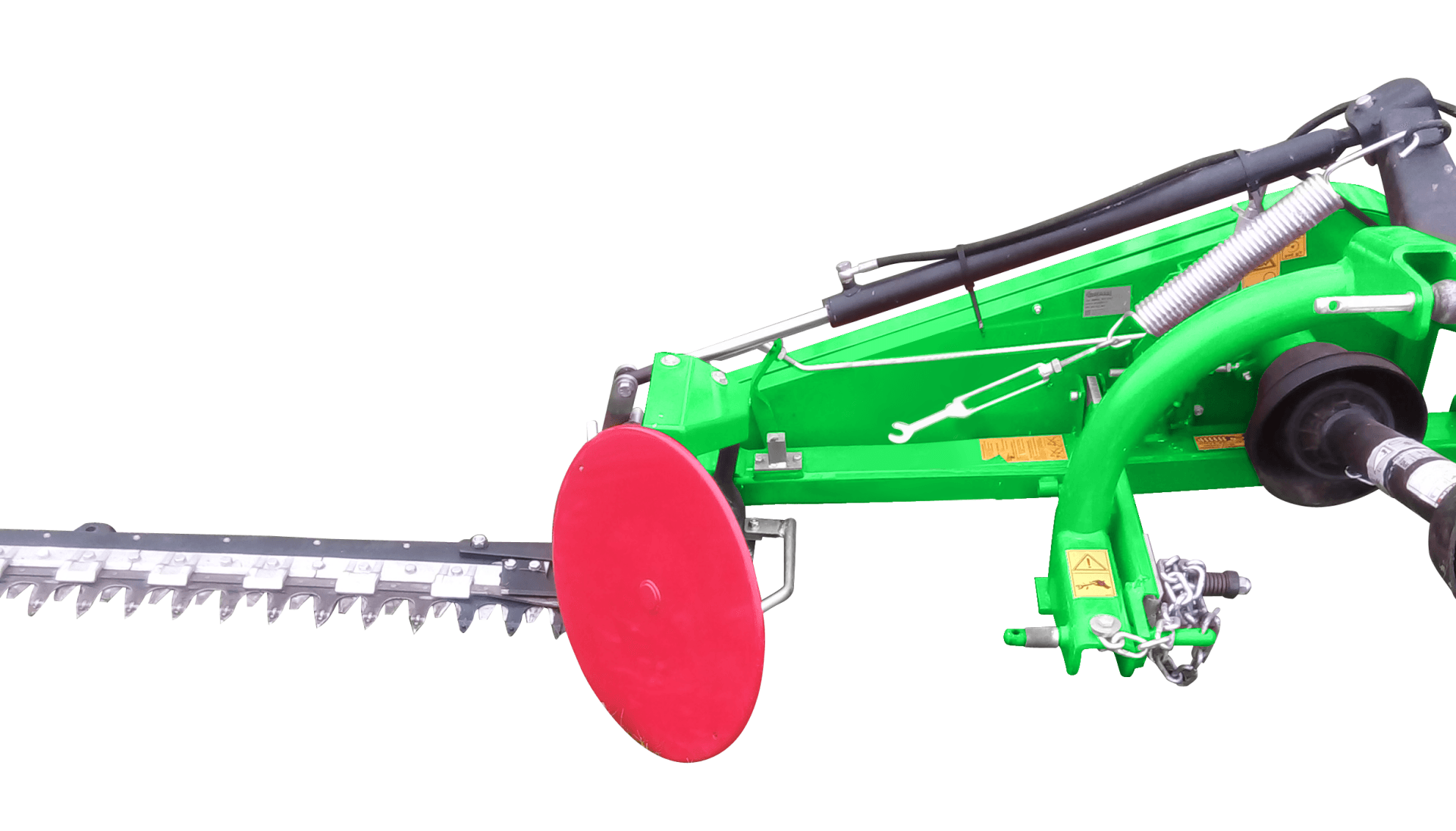

cutting disc on the drive

To avoid blockages in front of the drive when cutting large quantities, the HEUMA mowers can be fitted with a cutting disc on the drive. This makes cutting large quantities more comfortable.
DM150 DM180 DM210 DM240 DM270
working width 1,50m 1,80m 2,10m 2,40m 2.70m
speed 8-12 km/h 8-12 km/h 8-12 km/h 8-12 km/h 8-12 km/h
Weight 248 kg 264 kg 287 kg 305 kg 322 kg
Performance 15 PS 20 PS 25 PS 30 PS 35 PS
DMF180 DMF210 DMF240 DMF270
working width 1,80m 2,10m 2,40m 2.70m
speed 8-12 km/h 8-12 km/h 8-12 km/h 8-12 km/h
Weight 248 kg 264 kg 287 kg 305 kg
Performance 15 PS 20 PS 25 PS 30 PS
