The Heuma K360 single-rotor swather is the little brother of the K400 swather with 40cm less working width and a single axle. 8 swath arms with 4 double tines each ensure high area performance
Sprache - Language
rotary rake
HEUMA rotary rake
Efficient raking for optimal feed quality
The HEUMA rotary swather is the ideal choice for farmers who want precise and gentle swathing work. Thanks to innovative technology and robust construction, the HEUMA rotary swather ensures that the crop is deposited cleanly and without loss in even swaths. This efficiency not only protects the forage, but also reduces soil wear and optimizes the drying process - a decisive advantage for forage quality.
Advantages of the HEUMA rotary rake at a glance:
- Precise swath formation: Uniform and loss-free deposition for the best drying results.
- Robust and durable: High-quality materials guarantee a long service life, even under difficult conditions.
- Easy to use: User-friendly design for quick adjustment and effortless operation.
- High price-performance ratio: top quality at fair conditions.
Discover the advantages of the HEUMA rotary swather and increase your harvest efficiency. HEUMA – your partner for modern grassland technology.
HEUMA single-rotor rake K-series
Single-rotor rakes K360 and K400 with working widths of 3.6m and 4.0m respectively are ideal for medium-sized and small-structured grassland. The simple and robust technology is also inexpensive to purchase and maintain.
HEUMA single-rotor rake K400
The K400 single-rotor swather has a working width of 3.8 to 4.2 m. 9 arms ensure clean picking up of the crop. The tandem axle ensures smooth running. 4 double tines ensure high swath performance
Heuma single-rotor rake K360
swath gearbox with oil bath
All HEUMA rotary rakes have closed gearboxes with oil bath lubrication from Comer. This means that the service life of the machines is very high
adjustable swath guide sheet and 4 double tines
To form clean and straight swaths, the rakes are equipped with iron-reinforced swath guide cloths. These can be pushed in and out from the side, creating different working widths
The K-series always has 4 double tines per swath arm.
PTO with slip clutch and freewheel
All K-series rakes are supplied with a PTO shaft with slip clutch and freewheel. This increases safety against damage to the machine
optional support wheel
The 3-point linkage of the rakes can be equipped with a support wheel at the front for better ground adaptation.
stable 3-point with suspension
The 3-point linkage of the rake is sprung at the top, which ensures good ground adaptation and smooth running.
Galvanized swath arms and protective bars
The parts of the machines that are exposed to the stress of crops or vegetation are hot-dip galvanized, which prevents these parts from rusting.

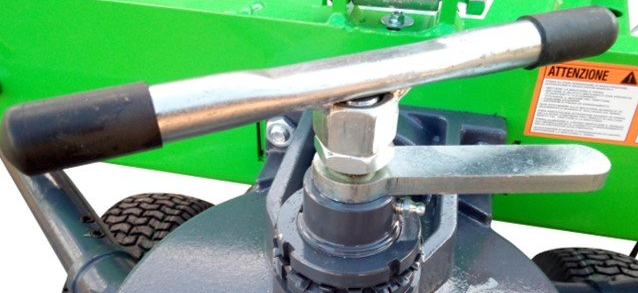

Particularly high ground clearance
The use of long tines achieves a high ground clearance. This means that the rakes can also cope excellently with large harvest quantities. The height can be adjusted and locked using an adjusting lever.
compact storage
Small space requirement due to removable arms and lowered swath guide sheet
| Type | working width | number of arms | number of double tines | transport width | Weight | Performance | tires |
|---|---|---|---|---|---|---|---|
| K360 | 3,10 - 3.80m | 8 | 32 | 1,15 m | 280 kg | 35 PS | 16/6.5x8 |
| K400 | 3,60 - 4,20m | 9 | 36 | 1,55 m | 320 | 35 | 16/6.5x8 |
