The working width of the Eagle star wheel rake can be changed as required. To do this, the angle for the suspension of the rake stars is changed. Large angle for a large working width and small angle for a smaller working width.
Sprache - Language
Eagle center rake
Eagle center rake

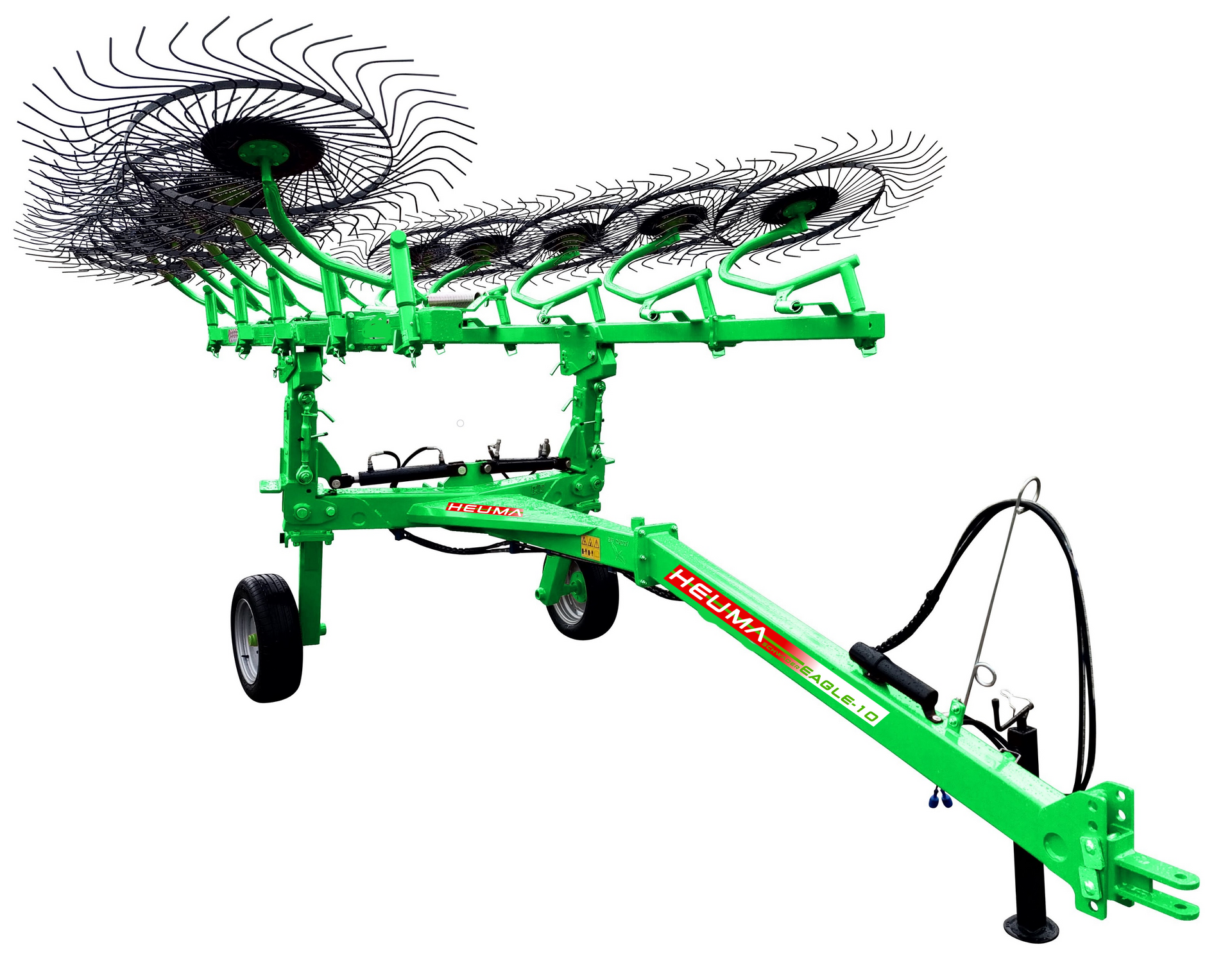

The Eagle star rake is the double wheel rake with a working width of up to 7.40 m. Its high ground clearance of 90 cm allows large quantities of crop to be swathed. One-sided swathing can be achieved by folding one side of the swath.
The working width of the Eagle star wheel rake can be changed as required. This can be done by adjusting the star angle using a ring of holes or via the frame using a double screw. The latter also allows the width of the swath to be adjusted.
The star wheels on the Eagle star wheel rake are mounted on a frame, which means that each star wheel can be adjusted individually.
The optional central star wheel or central star is used to loosen the crop in the swath deposit area.
The star wheels on the Eagle star wheel rake are mounted on a frame, which means that each star wheel can be adjusted individually.
Eagle Starwheel Swather Center Tray Models
| working width | number of stars | Weight (kg) | |
|---|---|---|---|
| Eagle-8 | 5,00-5,60m | 8 | 680 |
| Eagle-10 | 5,60-6,60m | 10 | 780 |
| Eagle-12 | 6,00-7,40m | 12 | 890 |
